5 speed box, Tech name of mainshft splines?

[Anorak_ian]

Hi all,
anyone know of the technical name for the 5 speed Enfield gearbox mainshft splines?

If anyone has the technical drawings so much the better.

Cheers
Ian

[Sphere]

Say what? http://www.jainenfield.com/gears.html

[Anorak_ian]

Thanks for the reply, but I needed a technical diagram of the splines, noting every angle, and mesurments of grooves and splines.
There should be a propper tech name for this spline arangment, Bsi, Din, Ansi etc.



Sorry should have said, it's the splines where the clutch fits over.

[Stuart]

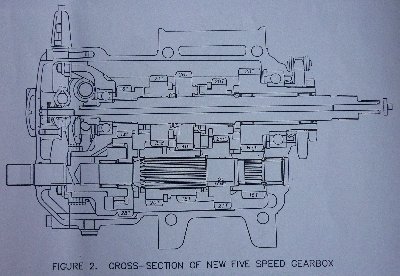

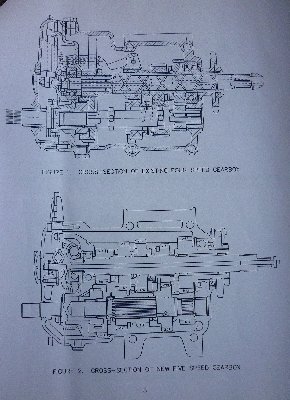

I knew I had this somewhere This is all I have of the box itself.

[Anorak_ian]

Thanks for that, I'm sure that they will be very useful.

I was going to get an engineering company to make a bolt together coupling to extend the 5 speed gearbox shaft, using the tech drawing for guidance.
This would have saved me butchering a couple of Enfield clutch centres. But I have decided to just get on and make it.

Thats odd the post has come up twice. Bizarre.
